Automatic NFC Fruit Juice Aseptic Filling Machine Production Line
| | Suitable bottle |
| Bottle material | PET |
| Bottle volume(ml) | 200ml--2500ml |
| Bottle type | Round , Square or coustomized |
| Bottle height(mm) | 160-340 |
| Bottle diameter(mm) | 50-100 |
Main Features:
1. Using the wind sent access and move wheel in the bottle directly connected technology;
canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to
adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch
with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of
conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from
famous company such as Japan's Mitsubishi, France Schneider, OMRON.
| Model | RCGF14-12-5 | RCGF16-16-5 | RCGF24-24-8 | RCGF32-32-10 | RCGF40-40-12 | RCGF50-50-15 |
| Capacity (BPH) | 3000-4000 | 5000-7000 | 6000-8000 | 8000-10000 | 12000--15000 | 18000-25000 |
| Power supply | 2.42 KW | 3.12 KW | 3.92 KW | 3.92 KW | 5.87 KW | 7.87 KW |
| Overall dimension | 2360×1770×2700 | 2760×2060×2700 | 2800×2230×2700 | 3550×2650×2700 | 4700×3320×2700 | 5900×4150×2700 |
| Weight (KG) | 2600 | 3500 | 4800 | 6500 | 10000 | 12000 |
Detaile Images
The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution
meet the requirements of hot filling and filling (the liquid level is controlled at about 15 mm, and the level level can be fine-tuned), so as to minimize the return flow of the material, thus providing hardware guarantee for ensuring the flavor of the product.
Capping Part
The capping system applies advanced French technology,when clamp the cap will screw immediately and magnetic torque type capping head
Cap loading machine
Pre-process system.
1 High-shear emulsifying tank + Plate heat exchanger 2 Mixing tank 3 UHT sterilizer + homogenizer machine + Buffer tank 4 Hot water system + Hot water tank 5 CIP cleaning system.

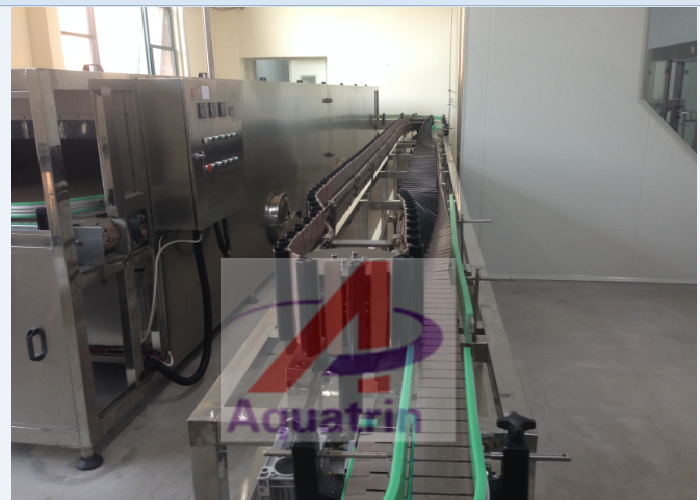

Bottle Inverter Chain
1/Use juice own high temperature to kill the bacterial inside cap. 2/Use juice own high temperature to improve sealing of bottle to extend warranty time. 3/Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.
We suplly Free Factory Layout design
We suplly Free Bottle Shape design
Water treatment system
Labeling Machine
Laser date printer
PE film wrapping package machine

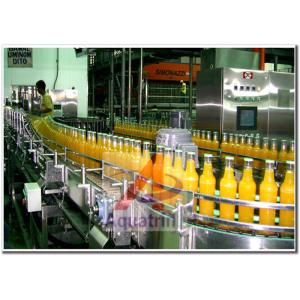

Customer Photos
After Sales Service
1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.
2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.
3. Quality guarantee
We promise that our goods are all new and not used. They're made of suitable material, adopt new design. The quality,
specification and function all meet the demand of contract. We promise that the products of this line could storage for one
year without adding any aseptic.
4. After sales
After checking, we offer 2 yearsas quality guarantee, free offer wearing parts and offer other parts at the lowest price. In
quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician. After quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipment according to seller's demand, debug some failures. If the problems are still can not solve, we will arrange technician to your factory solving the problems.automatic water filling machine video
