12000BPH 32 Nozzles Drinking Water Bottling Machine PET Plastic 5kw

Name: 12000BPH 32 Nozzles Drinking Water Bottling Machine PET Plastic 5kw
Brand: Aquatrin
Price: 12000 USD

Wholesale 12000BPH 32 Nozzles Drinking Water Bottling Machine PET Plastic 5kw from china suppliers

Brand Name : Aquatrin

Model Number : CGF

Certification : ISO CE

Place of Origin : China

MOQ : 1unit

Price : USD12000-50000 1Set

Payment Terms : L/C, T/T

Supply Ability : 10units per month

Delivery Time : 45days

Packaging Details : wooden package

Warranty of core components : 2 years

Capacity : 4000BPH, 8000BPH, 12000BPH, 6000BPH, 20000BPH, 16000

Model : CGF32-32-8

Filling Accuracy : ±2ml

Processing Types : Automatic Bottle Filling Sealing Machine

Filling nozzles : 32 nozzles

Contact Now

Product Description

A To Z Automatic Drinking Water Producing Bottling Filling Machine Line.

12000BPH 32 Nozzles Drinking Water Bottling Machine PET Plastic 5kw

What makes a complete water line?

The whole line contacts 5 main parts:
Bottle blowing machine
Water treatment sytem
Water bottle washing filling and capping three in one machine
Labeling machine
Shrink Packing machine

1.Bottle blowing machine
To Blow the preformers to be bottles.

Full automatic blow molding machine is suitable for producing PET plastic containers and bottles in all shapes. It is widely used
 to produce the carbonated bottle, mineral water, oil bottle, and hot fill bottle etc.Faygoplast supplies blowing solutions from 1000BPH to 24000BPH

2.Water treatment sytemto produce mineral water or pure water from well,lake,river and other source water

3.Water bottle washing filling and capping three in one machine
to wash the bottles ,fill drinking water into bottles,seal bottles with caps

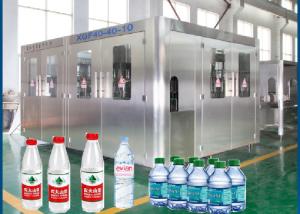

Full Automatic 3 in 1 Complete PET Bottle Pure Mineral Water Filling Production Machine
 This automatic rinsing, filling and capping machine, could be applicable quantitative filling and capping of drinking
 water,mineral water,Pure water. It has functions as follows: Disinfectant rinse, aseptic water rinsing; automatically i liquid
 filling tank, inlet material;

Model	CGFCGF8-8-3	CGF12-12-5	CGF18-18-6	CGF24-24-8	CGF32-32-8
Speed	3000BPH	5000BPH	7000BPH	10000BPH	12000BPH
Main Power	1.5kw	2.2kw	3.8kw	4.2kw	5kw

5. Labeling Machine

This bottle labelling machine is equipped with SS304 cover and aluminumalloy structure. It is suitable for the round bottle,square bottle, oval bottle.
 Servo motor controls cutting operation to last the blade service time and make label more accurate. It owns automatic computer
 control, automatic detection, automatic positioning, fast label replacement, accurate label cutting, colour HMI with English and
 other characteristic.

6. Shrink Wrapper Packaging Machine

The machine is developed especially for mineral water, beverage, wine, beer, product and soon.
 Infusion medicine bottle combination packaging, with stable function, and the packed articles.
 Tight and orderliness. It can be handled as a single pushing machine when high speed demanded.

Air Conveyor

This conveyor is mainly used to convey empty PET bottles form bottle blowing machines or bottle sorting machines to filling machines. The air inside is filtered and make the bottles clean. The conveying speed and efficiency is high and can meet the requirement of high speed filling machines. It has no damage to bottle body. The arrangement form is flexible and includes
 horizontal transmission, vertical transmission and turning transmission.

Siemens Air Fan with Adjustor

The wind blowing port is made of 1.5mm thick stainless steel 304 plate. It uses standard steel stamping molding and then bending and welding.The guardrail of bottles uses standard aluminum alloy with PE material sheath.The standard model is M-746.
 The fan uses centrifugal fan (model Y90L-2) equipping with tmedium efficiency filter to ensure that the bottle mouth is clean.

Belt Conveyor for PET Bottles

Flexible conveyor parts including: flexlink drive and idler units, horizontal and vertical wheel, aluminum conveyor beam, support base, different size and chains and other conveyor accessories.
module design: save space; nice-looking; linght-weight; easy maintenance
high efficiency and reliable
transportation safely.
long service life
downstairs vertical transport
flexible design: convey flexiblely, easy to turn and climb
conveying speed is fast
cost is effective and favorable

Control system
  	 			S/N
 			Name
 			Brand
 			Country

 			1
 			Main motor
 			ABB
 			Switzerland

 			2
 			Inverter
 			MITSUBISHI
 			Japan

 			3
 			PLC
 			OMRON
 			Japan

 			4
 			Touch screen
 			MITSUBISHI
 			Japan

 			5
 			Contactor
 			SCHNEIDER
 			France

 			6
 			Thermo- relay
 			SCHNEIDER
 			France

 			7
 			Air-break switch
 			SCHNEIDER
 			France

 			8
 			Proximity switch
 			TURCK
 			USA

 			9
 			Photoelectric switch
 			BANNER
 			USA

 			10
 			Air circuit system
 			SMC
 			Japan

 			11
 			Water pump
 			Southern
 			China
